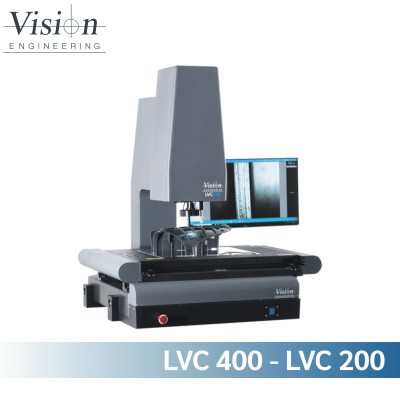

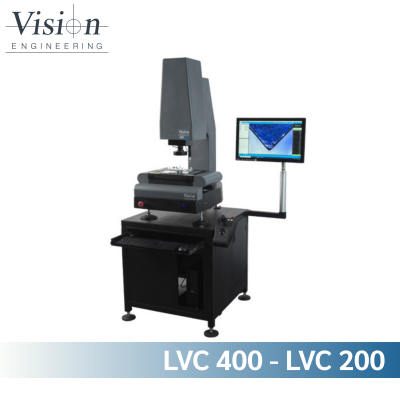

LVC Series

Fully automated 3-axis measurement systems

• Extraordinarily capable, but surprisingly easy to use, Vision Engineerings LVC400 and LVC200 fully automated 3-axis measuring systems have the power and versatility to meet the needs of demanding manufacturing environments. With a measurement range of up to 400mm x 300mm x 200mm, they are ideal for measuring large components or, just as easily, batches of small components.

Rapid, cost-efficient measurements

• A motorised measuring stage and motorised zoom lens work together to automate the movement of the system, reducing measurement time and operator discomfort. Not only that, but the multi-position motorised zoom lens allows changes to the magnification to be part of measurement program, eliminating the need for time-consuming manual changes.

Range of applications

• Thanks to its rich suite of functionality and incredible value, the LVC-Series is the ideal measurement solution for a wide range of applications including precision engineering, casting, plastic moulding, electronics and medical devices manufacture.

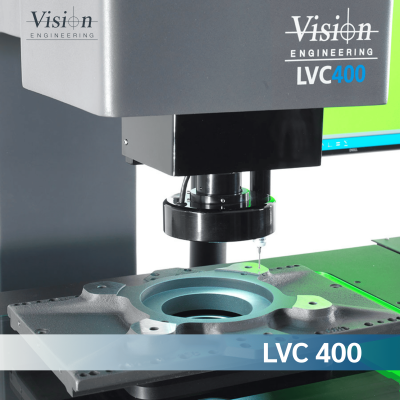

Large and multiple small components.

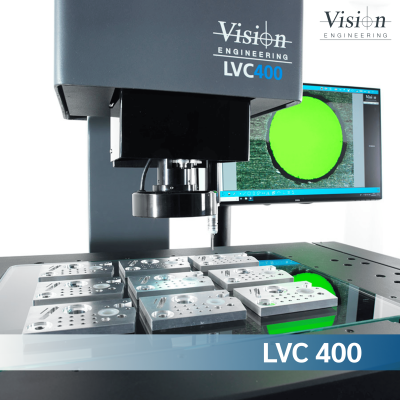

• A large (400 mm x 300 mm) stage makes the LVC400 ideal for measuring large components, but it can also be used to speed up the measurement of multiple smaller components by using the palletising feature.  Simply load the small components onto the stage and measure the whole lot in one program, saving valuable time.
