Lead-Screw Auto Tapping Machine
ข้อมูลทางเทคนิค

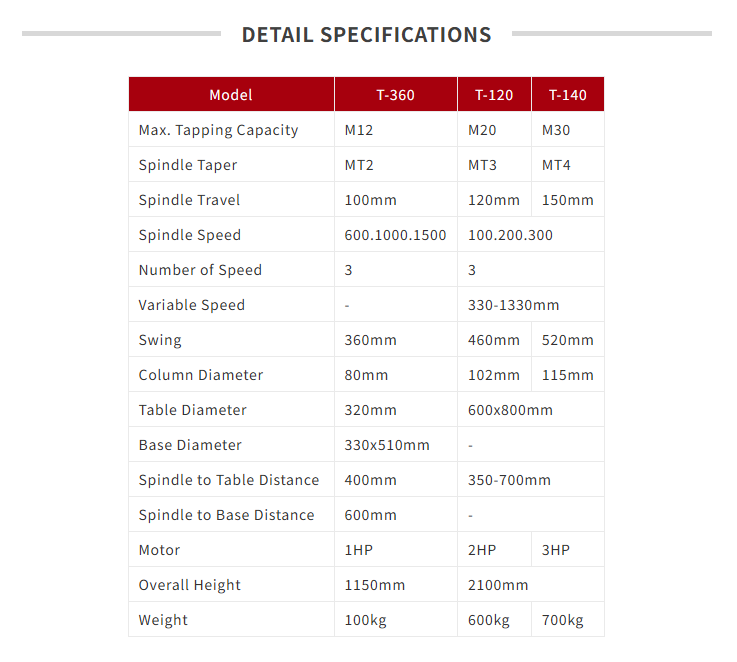

Model | T-360 | T-120 | T-140 | T-650 |
Max. Tapping Capacity | M12 | M20 | M30 | M20 |
Spindle Taper | MT2 | MT3 | MT4 | MT3 |
Spindle Travel | 100mm | 1200mm | 150mm | 140mm |
Spindle Speed | 600.1000.1500 | 100.200.300 | ||
Number of Speed | 3 | 3 | - | |
Variable Speed | - | 330-1330mm | ||
Swing | 360mm | 460mm | 520mm | 460mm |
Column Diameter | 80mm | 102mm | 115mm | 102mm |
Table Diameter | 320mm | 600x800mm | 420mm | |
Base Diameter | 330x510mm | - | 410x600mm | |
Spindle to Table Distance | 400mm | 350-700mm | 630mm | |
Spindle to Base Distance | 600mm | - | 930mm | |
Motor | 1HP | 2HP | 3HP | 2HP |
Overall Height | 1150mm | 2100mm | 1700mm | |
Weight | 100kg | 600kg | 700kg | 220kg |
